Multi Lane Auto feeder with Cross Conveyor (On- Edge) packing machine.

Overview

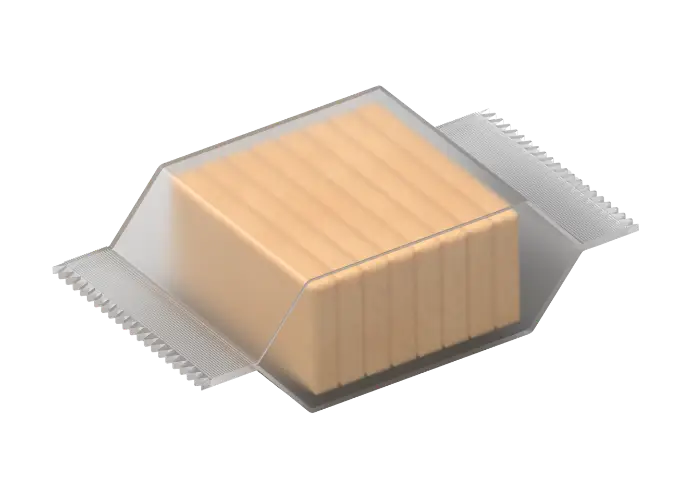

The On-Edge Packing Machine is engineered for high efficiency packaging of biscuits in various shapes and sizes. Equipped with a Multi Lane Auto Feeder, this system ensures smooth, continuous product feeding directly into the wrapper, significantly reducing manual intervention while maximizing output.

Multi Lane Auto feeder with On-Edge Packaging Machine (Model RPAF200S8)

High-Speed • Automatic Feeding • Precision Biscuit Packaging

Designed for modern, high-speed production lines, it delivers consistent alignment, precise wrapping, and superior packaging quality.

Key Features

Engineered for speed, precision, and ease of operation, the Multi Lane Autofeeder with On- Edge Machine ensures high productivity with reliable performance:
Configurable Right-to-Left or Left-to-Right Operation
Advanced Servo Driven System:
Basic Machine driven by 1.5 kW Servo Motor
Wrapper driven by 750 kW Servo Motor
Flight Bar System driven by 1.5 kW Servo Motor
Double Pusher driven by 750 kW Servo Motor
Inline Pusher driven by 750 kW Servo Motor
Cross Pusher driven by 750 Servo Motor
Kubler Make Slipring for reliable signal transmission
Individual Temperature Control System
Automatic Sealing Roller Open/Close Mechanism
Touchscreen HMI for easy operation and troubleshooting
Auto Splicer

Technical Specifications

Speed:- 200 P.P.M.
Packet Length: 80 – 250 mm
Double Velocity Pusher System for enhanced speed and accuracy
Electrical Supply: 415V AC, 50 Hz (with Neutral & Ground)
Total Power Consumption: 7.2 kW
Machine Weight: Approx. 1500 kg

Optional Features

Enhance automation and quality control with:

No Product – No Wrapper Function
Individual Temperature Controller with Interlock
Burnt, Joint & Empty Packet Rejection System
Spliced Packet Auto-Rejection
